Products:

1. Tunable Fiber Grating

2. Tunable Fiber Lasers

3.  Fiber Gratings

Tunable FBG



Download test report samples here.

1.  Tunable Fiber Bragg Grating (TFBG)

Tunable FBG Flier

Test sample

FBG-1550-1

Test sample

FBG-1550-2

Test sample

PM-FBG-1073

Test sample

FBG-1310

Test sample

FBG-1610

Test sample

FBG-940



        Our Tunable Fiber Bragg Gratings (TFBGs) are built on our patented axial compression tuning technology*, offering a large wavelength tuning range and a reliable tuning process. TFBGs provide a versatile "all-fiber" tunable filter platform for wide-ranging applications, such as tunable lasers, nonlinear optics, quantum optics, fiber optic sensors, and optical fiber telecommunications. TFBGs are fully compatible with optical fibers, boasting low-insertion loss and high-power handling capability.

       Our solutions can be tailored to meet your specific requirements.

      *Patent: US7801403; US9864131B2; China ZL 2008 1 0211470.7



1-1.                  Outline of the tunable fiber Bragg grating tuner (TFBG)



Features:

·         Purely axial compression tuning technology

·         Large wavelength tuning range

·         Tuning for various types of fiber grating

·         Low insertion loss

·         High power handling

Applications:

·   All-fiber tunable filters

·   Tunable lasers -

          Fiber laser, Fiber pigtailed semiconductor laser

·   Laser line blocking

·   Fiber optic sensors

·   Tunable optical wave mixing

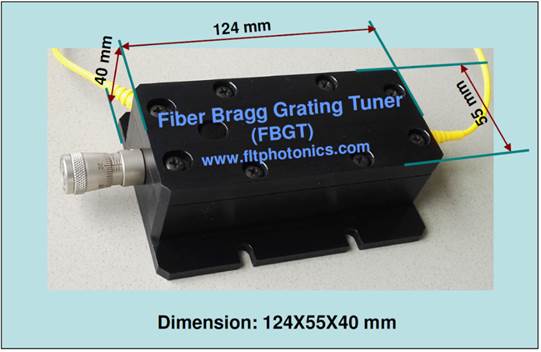

Fig.1-1. Typical dimension of the TFBG: 124X55X40 mm

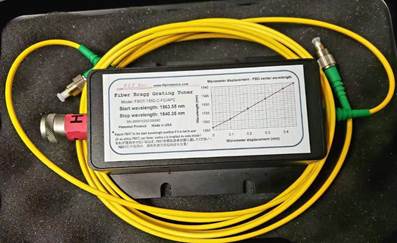

Fig.1-2. Photo of the Tunable FBG

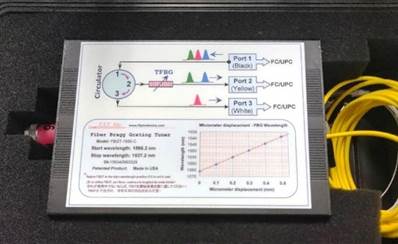

Fig.1-3. Photo of the Tunable FBG with built-in circulator







1-2. Typical tuning performance

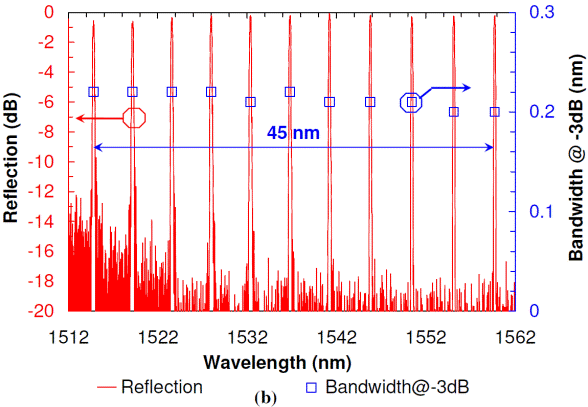

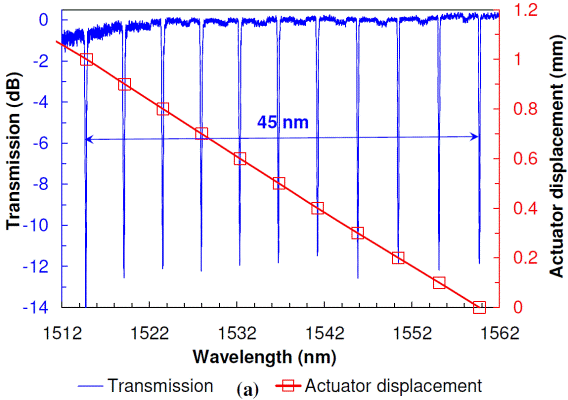

Fig. 1-4.  Typical spectra of wavelength shifts observed during tuning of a 1560-nm FBG.

(a) transmission spectrum of the FBG and center wavelength shift versus actuator displacement;

(b) reflection spectrum of the FBG and -3dB spectral bandwidth variations during tuning.





1-3. Typical specifications of the TFBG:

 *The specifications listed here are for reference only. For product orders, please provide your detailed requirements.

(1) Parameter:

TFBG-1550

TFBG-1060

TFBG-1300

(2) Wavelength band:

1550 nm

1060 nm

1300 nm

(3) Tuning wavelength λ, and

Tuning range ∆λ: (nm)

1

1565~1535, (∆λ ~ 30)



1070-1045, (∆λ~25)

1310-1280, (∆λ~30)

2

1610~1580, (∆λ ~ 30)

1080-1055, (∆λ ~25)



Side lobe suppression (SLS): (dB)

>15

>15

>15

Spectral width @ -3dB: (nm)

<0.6

<0.6

<0.6

Reflectivity: %

>98%

>98%

>98%

Tuning stability: %

<0.3%

<.0.3%

<0.3%

(4) Fiber type:

SMF-28e or PM fiber

HI-980, HI-1060, or PM fiber

SMF-28e, or PM fiber

Polarization:

Single mode fiber, or Polarization-Maintaining (PM) fiber

Total fiber length: (m)

Lead fiber: 3 mm sleeve, length >1.5 m, and no connector

Fiber termination options:

no connector, FC/APC connector, or FC/PC connector

(5) Power handling: (W)

<1W with fiber connectors, ~10W with fusion spliced fibers

(6) Tuning type:

Manual tuning, Newport high performance micrometer, Model:BM17.04N, Sensitivity:1um

Dimension: (mm)

124 X 55 X 40

Notes:

(1)  The specifications listed here are provided for reference purposes only. For product orders, please provide us with your detailed requirements.

(2)  Other wavelength bands or wavelength tuning range are available, please contact us.

(3)  Wavelength tuning and tuning range come with a tolerance of ±2 nm.

(4)  Other fiber options are available, please specify your desired type of fiber, when placing an order.

(5)  For high-power applications, fusion-spliced fiber connections are necessary. Fiber connectors have limited power handling capability, typically less than 1W.

(6)  Tuning micrometer is a Newport micrometer (Model: BM17.04N) with a sensitivity of 1.0 µm. It can be removed by the customer and replaced with a motorized actuator for electronically controlled tuning. For more details, please get in touch with us.

(7)  Additionally, we provide installation services for custom fiber gratings. To receive detailed information about the installation of your custom fiber gratings, please reach out to us.





1-4. Tunable FBG with built-in circulator:

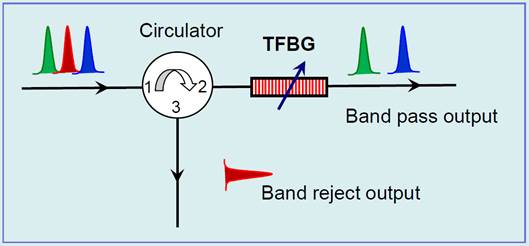

Fig.1-5. TFBG is configured as a band-pass and band-reject filter.

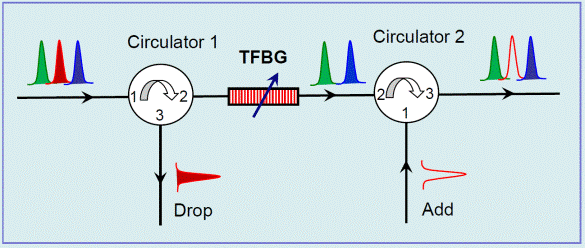

Fig.1-6. TFBG is configured as a tunable add-drop filter.

Tuning type:

Manual tuning, Newport high performance micrometer, Model:BM17.04N, Sensitivity:1um

Dimension: (mm)

153 X 105 X 55

Notes:

A tunable FBG can be combined with a circulator for various applications, including blocking specific laser lines and transmitting other light signals. It can also be used as a tunable add-drop filter in optical communication systems.

If you wish to order a tunable FBG with a built-in circulator, please take note of the following:

(1)  Circulators or isolators have an operational wavelength window, and the isolation of these devices is wavelength-dependent. An ordinary circulator typically has limited power handling capability, usually ranging from 300mW to 500mW, depending on the wavelength.

(2)  For high-power applications, it is essential to choose a high-power circulator. Additionally, please be aware that fiber connectors have limited power handling capability (typically less than 1W), and for high-power situations, fusion-spliced fiber connections are recommended.





Tunable Lasers



Download test report samples here.

2.  Tunable Fiber Lasers

Tunable laser

Flier

Test sample

TFL-1073

Test sample

TFL-1550

Test sample

FBG-1310



Tunable fiber lasers are built upon our innovative tunable fiber grating technology. These lasers are configured by directly tuning the FBG. They exhibit a high laser spectrum to Amplified Spontaneous Emission (ASE) suppression ratio, with an optical Signal-to-Noise (S/N) ratio of approximately 75dB. The laser cavity is designed with "all-fiber" connections, making the system simple, compact, robust, and highly resistant to vibrations. Moreover, the lasers feature additional output/input terminals*, which can serve as tunable FBG devices and fiber ASE sources, enhancing their versatility for various applications.



Similarly, fiber-pigtailed semiconductor lasers can be configured using tunable FBGs for external cavity wavelength tuning, offering flexibility and adaptability to meet your specific needs.



*The availability of output/input terminals depends on customer order options.





2-1. Outline of the tunable lasers



Features:

·       Utilizes a tunable FBG as a tuning element.

·       Compact and robust with an all-fiber configuration.

·       High suppression of laser line to ASE.

·       Exceptional resistance to vibrations.

·       Suitable for tuning in fiber lasers or semiconductor lasers.

·       Offers tunable FBG and ASE output port options*.



(*The laser can include additional output terminals, which can be used as tunable FBG and ASE sources.)

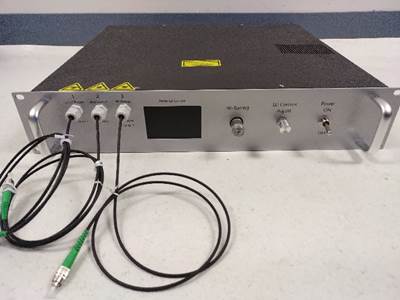

Fig.2-1. Tunable fiber laser (Double-clad fiber laser system)



Fig.2-2. Tunable fiber laser and output

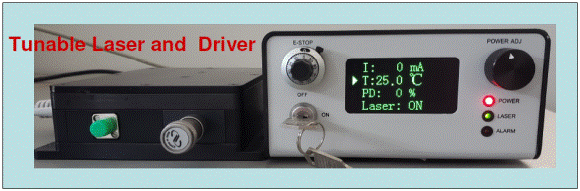

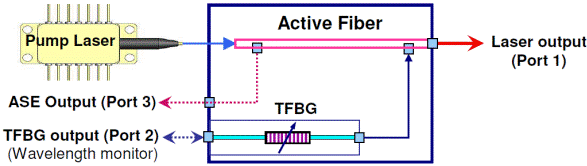

Fig.2-3. Tunable fiber laser (Core pumping fiber laser system)

Terminal Ports:

Port 1: The output terminal for the tunable fiber laser.

Port 2: Connected to a spectral analyzer for monitoring the output wavelength.

             This terminal can also be utilized as an input for a tunable FBG,

Port 3: Functions as the ASE output terminal, where the laser outputs the ASE spectrum.





2-2. Typical tuning performance

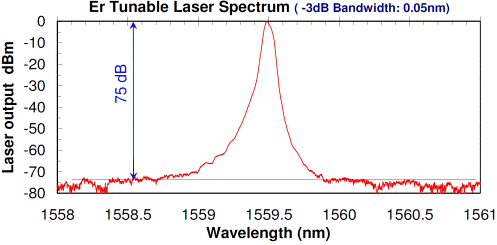

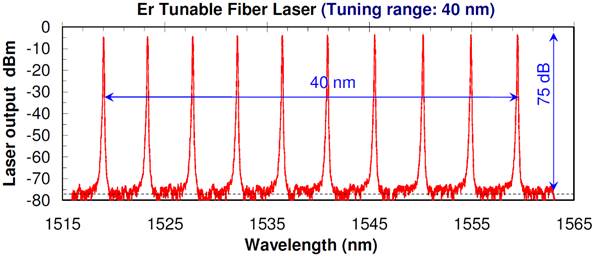

Fig.2-4. Tuned output spectrum from a tunable Er fiber laser.





Fig.2-5. Typical spectrum of the tunable Er fiber laser.

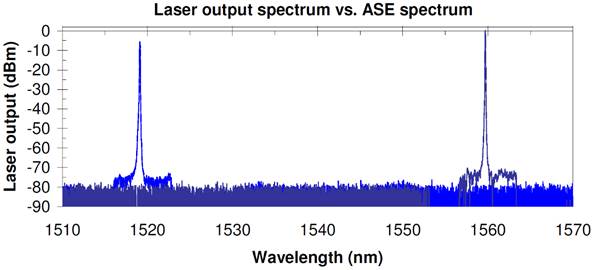

Fig.2-6. Tuned output spectrum and ASE background.

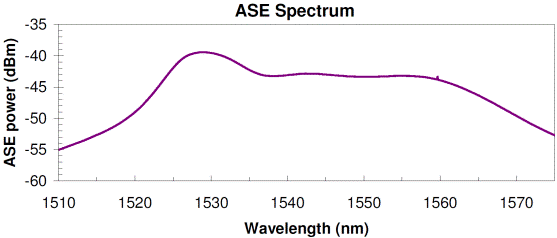

Fig.2-7. Example spectrum of ASE output.

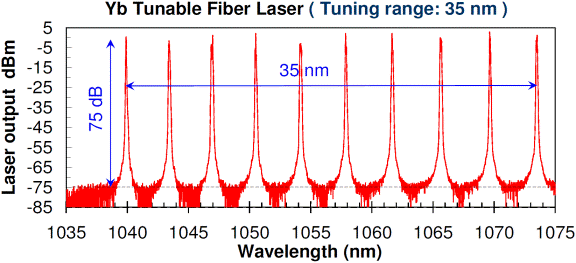

Fig.2-8. Example output spectrum from Yb tunable fiber laser.

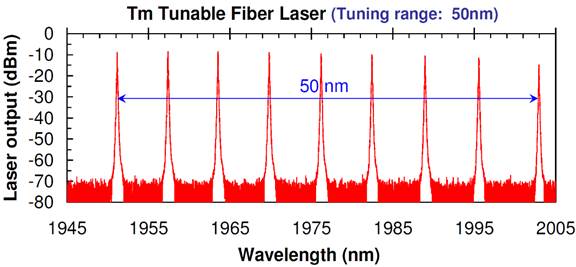

Fig.2-8. Example output spectrum from Tm tunable fiber laser.



2-3. Typical specifications of tunable fiber lasers (TFL):

*The specifications listed here are for reference only. For product orders, please provide your detailed requirements.

Current Offered Wavelength Bands:1550 nm,1060 nm,1310 nm,2000 nm

For wavelengths outside of these bands, please get in touch with us.



(1) Parameter:

TFL-1550

TFL-1060

TFL-1310

(2) Wavelength band

1550 nm

1060 nm

1300 nm

(3) Tuning wavelength λ, and

Tuning range ∆λ: (nm)

1

1565~1535, (∆λ ~ 30)

1070-1045, (∆λ~25)

1310-1280, (∆λ~30)

2

1610~1580, (∆λ ~ 30)

1080-1055, (∆λ ~25)



(4)Output Power: (mW)

50, 100,1000

1000

30

Spectral width @ -3dB: (nm)

<0.1

<0.1

<0.1

Tuning stability: %

<0.3%

<0.3%

<0.3%

Polarization:

Random or Linear Polarized

Output connector:

FC/APC

Tuning type:

Manual tuning, Newport high performance micrometer, Model:BM17.04N, Sensitivity:1um

(5)Options

Tunable FBG terminal

ASE source output terminal

Laser driver power supply (Core pumping system)

Notes:

(1)  The specifications listed here are provided for reference purposes only. For product orders, please provide us with your detailed requirements.

(2)  Other wavelength bands or wavelength tuning range are available, please contact us.

(3)  Wavelength tuning and tuning range come with a tolerance of ±2 nm.

(4)  Other output power is available; please specify your desired power, when placing an order.

(5)  In core-pumped fiber laser systems, most laser diode controllers with TEC from various manufacturers can be used with our laser modules. For more details, please get in touch with us.







3. Fiber Gratings

        We produce high-strength Fiber Gratings using state-of-the-art facilities in collaboration with our partner institutions. For ordering our products, kindly furnish us with your specific requirements



Fiber Grating Order Sheet:

Parameter:

Specification requests

Grating Type:

Specify grating type: Fiber Bragg gratings (FBG); Phase shifted FBG; Long period fiber grating; Tilted fiber gratings, etc.

(1)Center Wavelength λ: (nm)

Specify the center wavelength of FBG and tolerance.

(1)Spectral Width at FWHM: (nm)

Specify the spectral width of the FBG at -3dB (FWHM)

Side lobe suppression: (dB)

Specify side mode suppression of the FBG, (default >15dB)

Reflectivity: (%)

Specify the reflectivity of the FBG, (10% ~99.9%)

Recoating and protective sleeves:

Specify the type of recoating: Bare fiber, Acrylate, Polyimide. And protective sleeves, 0.9mm or 3mm.

Total Fiber Length: (m)

Specify total fiber length, (default >1 meter)

Fiber Type:

Specify the fiber type, Example:  Corning SMA-28e fiber

Fiber Termination

Specify fiber termination type: No connector, or FC/PC, FC/APC connector

       Notes:

(1)            Generally, the center wavelength tolerance is ±0.6 nm, and the spectral width tolerance is ±0.15 nm
